IPD Scan Bodies
Watch our video for more information:
The most accurate digital workflow starts with selecting the perfect scan body:
Single-Unit Restorations

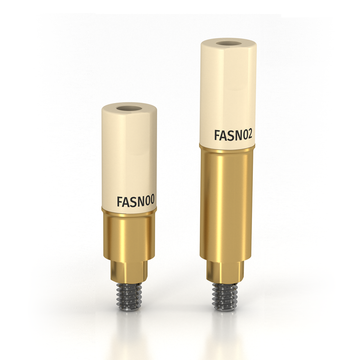

Engaging Scan Body
- For single-unit restorations and cement-retained bridgework.
- 10mm Standard Height (-00 Code Suffix)
- 15mm Tall - For subcrestal and deep implant placements (-02 Code Suffix)
Multiple Unit Restorations

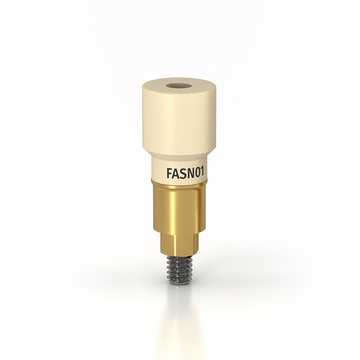

Non-Engaging Scan Body
- Required for screw-retained bridges spanning two or more implants.
- 10mm Standard Height (-01 Code Suffix)
Why choose IPD Scan Bodies?
Accuracy, fit and reliability
- Compatible with all intraoral scanners and desktop lab scanners.
- Includes a captive screw to prevent loss and makes it easier to mount.
- TiN coating offers antibacterial properties to protect the soft tissue.
- Titanium connection ensures durability and radiographic verification.
- PEEK top section for optimal IOS data capture.
- Maximum Z-axis precision, as it rests on the sagittal plane of the implant.
- Manufactureed to a tolerance of ± 5 microns.
- Laser-etched scan body reference code.
- 2 heights for engaging: 10 mm for standard cases, and 15 mm for situations involving a very deeply placed implant.
CAD Alignment
Optimising Best-fit
Digital accuracy means being able to align two STL meshes as accurately as possible.
- IPD is the only manufacturer that has taken into account the oversizing that occurs when scanning and has developed a universal tool to help solve it.
- By providing the lab with 6 additional STL library files for each IPD scan body, it enables the technician to improve their CAD alignment and maximise accuracy.
