Digital Workflow

The most flexible and comprehensive digital solution.

STEP 1

Scan Bodies

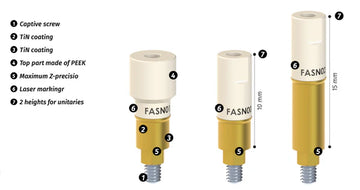

IPD2004 Scan Bodies – Precision Meets Versatility

IPD2004 scan bodies are designed for maximum compatibility and accuracy:

  • Suitable for intraoral (clinical) and extraoral (laboratory) systems, including Renishaw® probe compatibility.
  • Integrated screw prevents loss and ensures easy handling.
  • TiN-coated titanium base offers antibacterial protection and radiographic visibility.
  • PEEK top enhances scan accuracy and implant positioning.
  • Manufactured to a ±5 micron tolerance, with laser-marked references for clear identification.
  • Available in two heights: 10 mm (standard) and 15 mm (for deep implants).

STEP 2

3D Printer Verification

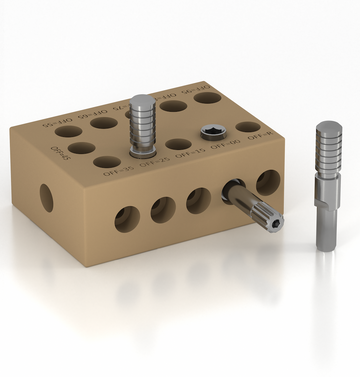

IPD provides a master STL file to help you verify the resolution of your 3D printer.

We’ll also send you a free verification analog, allowing you to test the fit within the calibration STL. Once verified, we’ll supply the corresponding library with optimised parameters to ensure the highest level of accuracy when using our digital analogs in your 3D printed models.

Request your FREE Calibration Analog

STEP 3

Download Digital Libraries

Our digital libraries are available for the following systems:
Click Here to Download

STEP 4

Adjustable Height Interface Abutment

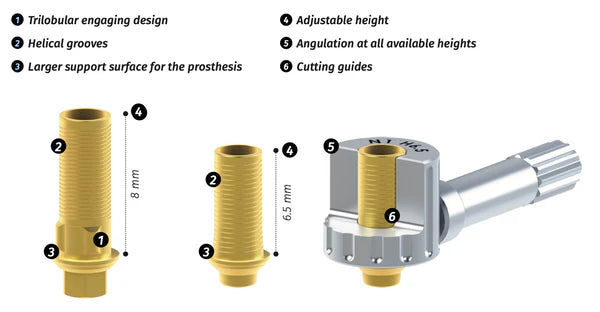

Advantages of the new design:

  • Compatible with the TPA Angled Screw System
  • New asymmetrical trilobular engaging design.
  • Geometry that is easier to mill.
  • Helical grooves assuring better grip.
  • Larger support surface for the prosthesis, preventing insufficient thicknesses according to the materials used.
  • Three different platforms: Narrow, Regular and Wide.
  • Adjustable height - 8 mm series for Single Units and 6.5 mm for Multiples.
  • The angulation window can be enabled at all available heights, both in Multiples and in Singles. New CAD/CAM Libraries are available for all possible variations.
  • Different gingival heights up to 3.5 mm.
  • Cutting guides with a set screw to make cutting and milling easier.

Single Unit Interface Abutment

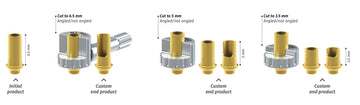

With a height of 8 mm, the unitary interface is enabled so that it can be trimmed down to various levels (6.5mm / 5mm / 3.5mm) according to the needs of each case.

With the help of the cutting guides and the transverse set screw, the height can be adjusted in a practical and simple manner.

Multiple Unit Interface Abutment

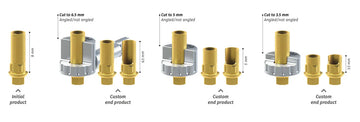

 The series height has been increased up to 6.5 mm and can be trimmed down to various levels (5 mm / 3.5 mm) according to the needs of each work. With the help of the cutting guides and the transverse set screw, the height can be adjusted the same way as the unitary interfaces.

Digital Analogs

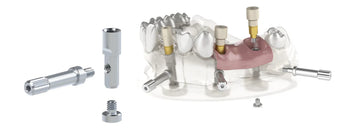

Innovative design with two screws, one located in the lateral area and another one in the lower area.

  • Guarantees exact positioning of the analog in the 3D model.
  • The lateral screw allows you to work with an articulator without losing the recorded bite.
